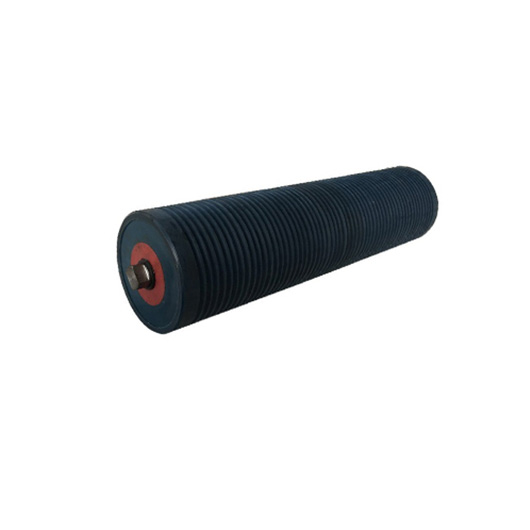

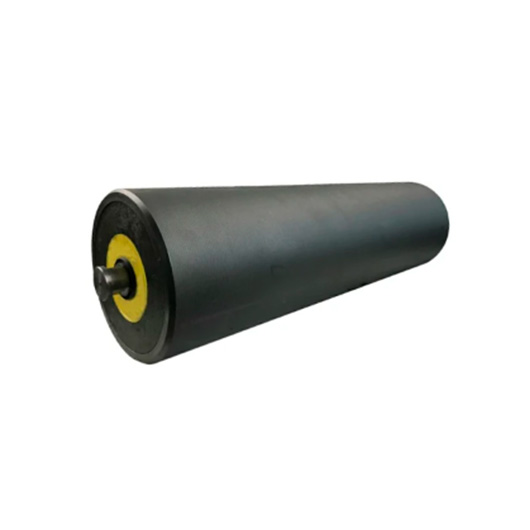

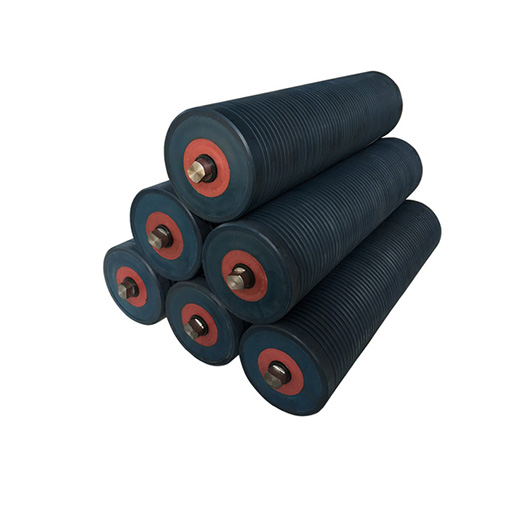

UHMWPE (Ultra-high molecular weight polyethylene) roller designed for the hardest applications. Due to it’s strengthened frame construction, UHMWPE roller can replace heavy duty steel rollers. The self-cleaning surface greatly reduce the risk of buildup from carryback material-the main cause of belt tracking problems, material spillage, premature wear and failure of steel rollers.
High wear resistance
Extreme impact resistance
Chemical resistance
Self-lubrication
Safe, non-toxicity
Adhesive resistance
Low density
|
No. |
Items |
Unit |
Results |
|
1 |
T.I.R |
mm |
≤ 0.2 |
|
2 |
Axial displacement |
mm |
≤ 0.4 |
|
3 |
Axial displacement after failing |
mm |
< 1.2 |
|
4 |
Axial load |
KN |
> 1.5 |
|
5 |
Rolling resistance |
N |
≤ 2.5 |
|
6 |
Water spay running test |
g |
0 |
|
7 |
Underwater running test |
g |
5 |
|
8 |
Coefficient of friction |
- |
≤ 0.1 |
Products type: Carrying / return roller, impact roller spiral roller, return disc roller, self-aligning roller, tapered roller, low noise roller, etc.
|
Roller dia.(mm) |
Face length(mm) |
Bearing |
Shaft dia.(mm) |
Tube thickness(mm) |
|
63.5 |
160-3500 |
6204 |
20 |
8,10,13,15 |
|
76 |
160-3500 |
6204 |
20 |
8,10,13,15 |
|
89 |
160-3500 |
6204 |
20 |
8,10,13,15 |
|
102 |
160-3500 |
6205 |
25 |
8,10,13,15 |
|
108 |
160-3500 |
6205 |
25 |
8,10,13,15 |
|
114 |
160-3500 |
6205 |
25 |
8,10,13,15 |
|
127 |
160-3500 |
6205,6206 |
25,30 |
8,10,13,15 |
|
133 |
160-3500 |
6205,6206 |
25,30 |
8,10,13,15 |
|
140 |
160-3500 |
6205,6206 |
25,30 |
8,10,13,15 |
|
152 |
160-3500 |
6305,6206,6307,6308 |
25,30,35,40 |
8,10,13,15 |
|
159 |
160-3500 |
6305,6206,6307,6308 |
25,30,35,40 |
8,10,13,15 |
|
165 |
160-3500 |
6305,6206,6307,6308 |
25,30,35,40 |
8,10,13,15 |
|
178 |
160-3500 |
6206,6307,6308 |
30,35,40 |
8,10,13,15 |
|
191 |
160-3500 |
6206,6307,6308 |
30,35,40 |
8,10,13,15 |
|
194 |
160-3500 |
6206,6307,6308 |
30,35,40 |
8,10,13,15 |
|
219 |
160-3500 |
6206,6307,6308 |
30,35,40 |
8,10,13,15 |
